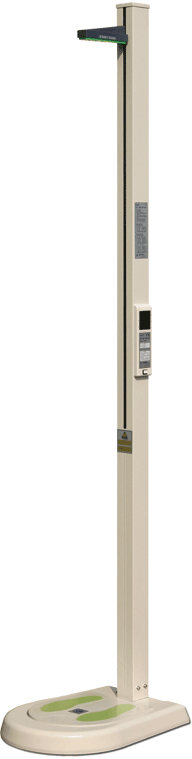

Height & Weight auto measuring scale

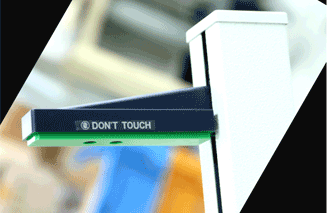

	- The touch-bar gives more soft contact. - The operation noise has been reduced. - A user can correct weight inaccuracy. - Wireless connection to a tablet PC or a mobile phone (Android only / optional) - Newly built in ultrasonic sensors in touch-bar give you soft touch by speed down right over the head.

	- Simple measuring just by stepping on the board - Height, weight and BMI show in digital - Wire connection to a PC or printer (optional) - Wireless connection to a tablet PC or a mobile phone (Android only) - Voice function "Stand up straight" to measure and "Measurement complete" (English/Chinese/Korean)

	- Model: DS-103M - Height range: 90 ~ 200cm (unit:0.1cm) - Weight range: 10~200kg (unit: 0.1kg) - Power: Adapter DC12V, 2A (AC220V,60Hz) - Dimensions(mm): 410(W)X550(L)X2190(H) - Weight 12.0kg - Test results can be seen in a tablet PC or a mobile phone. / Android only

※ Old model < DS-103 , DS-102M, DS-102 > are no more produced but repairing is possible.

■ Measuring Range

* BMI Formula: weight(kg) / height^2 (m^2)

* If height is 165cm, it should be 1.65^2

* Ex: height is 165cm, and weight is 60kg, then BMI will be 22.03 =>: 60/1.65^2=22.03

< BMI categories >

TECHNICAL SPEC.
MODE	DS-103M
Height Range	90~200 cm / 2.95 ~ 6.56 ft
Weight Range	10~200 Kg / 22.05 ~ 440.92 lb
Resolution	Height: 0.1cm / Weight: 0.1kg
Tolerance	Height: ± 0.1cm / Weight: ± 0.1Kg ( ± 0.003 ft / ± 0.220 lb)
Power Source	AC 100/220V ±10V, 50~60Hz, 1A
Display	Digital ( Height: 4 digits, Weight: 4 digits, BMI: 4 digits)
Starting time for horizontal bar	In 5 seconds after stepping on a weighing board
Moving Speed	15 cm/sec
Material	Aluminum diecasting
Packing Dimensions	BASE	720×450×160 (unit:mm) / 28.3"x 17.7"x 6.3"
	Pillar (RAIL)	2170×390×102 (unit: mm) / 85.4"x 15.4"x 4.0"
Packing Weight	BASE	8.7 Kg / 19.1 lb
	Pillar (RAIL)	7.5 Kg . 16.5 lb
Dimensions (assembled)	410×550×2190 (unit: mm) / 16.1" x 21.7" x 86.5"
Net Weight	12 kg / 26.46 lb
Printer	Optional
PC Communication	A port for communication is installed ( optional )
Height Measuring Method	Magnetic Linear Encoder and Load Cell
Operation Temperature	-5 ℃ ~ 40 ℃ / 50℉ ~ 104℉
Measuring System	Automatic Simultaneous Measuring of Height, Weight and BMI
Power adaptor	DC 12V / 2A
Measuring Time	Average 5 ~ 8 sec
Leveling Device	5 PCS of rubber srews (No water Level Device)
Fatness Formula	Formula by WHO (normal), BMI (upon request)
