<NEW> Digital readout for Absolute Linear Scale (Please click here to see more)

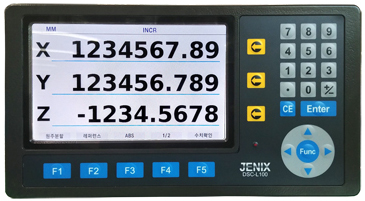

| LCD Readout / display (Model: DSC-L100 ) |
|
 |
- Easy setting from pop up menu
- Main funcion:
Bolt hole circle / preset, preset recall/ initializing / resolution changing / direction changing/ Error correction / sum up 2 axes / ABS / radius diameter / RS232 output option |
| |

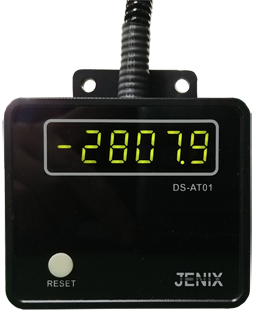

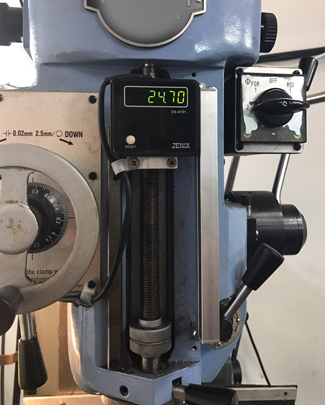

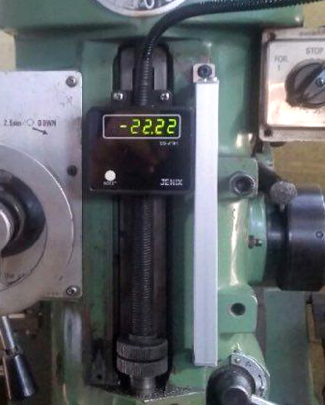

| Display only for Quill-axis (DS-AT01): Encoder + magnetic scale |
|
 |

|
| |
| Display only for 1-axis & 2-axis (simple style) |
|
 |
- Plastic case. for only 1-axis and 2-axis
* Basic operation:
preset/ preset recall/display zero/bolt hole circle/mm-inch/ ABS-normal mode conversion / has same function as DSC-800 digital readout

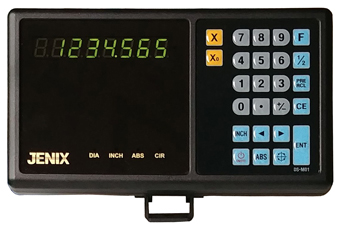

* Model: DS-S01 |
 |
* Main function:
Changing resolution/Changing direction/Error correction/reset/FND test/Selection magnetic or optical/Lathe sumup function / double counting/ tool offset

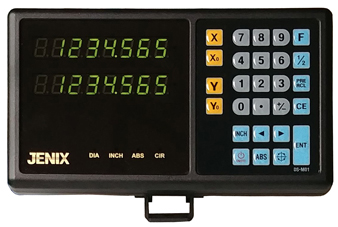

* Model: DS-S02 |
| |
| Small display unit for a pannel ( model: DSC-Q01) |
|
 |
1-axis dispaly
- ABS
- Process direction changing
- Display zero
- Dimensions(mm): 85 x 80 x 28
- mm / inch
- Error correction
- Double counting
Manual Download |
MODEL: DSC-804 (4-AXIS
DISPLAY) |
unit: mm |
 |
 |
|
No. |
KINDS OF 800 SERIES |
Where to use |
KEYBOARD |
1 |
DSC-801M |
MILL, OTHER
|
X0/X |
2 |
DSC-802M |
X0/X, Y0/Y |
3 |
DSC-803M |
X0/X, Y0/Y, Z0/Z |
4 |
DSC-804M |
X0/X, Y0/Y, Z0/Z, Q0/Q |
5 |
DSC-801G |
GRINDER |
G0/G |
6 |
DSC-802G |
Y0/Y, Z0/Z |
7 |
DSC-802L |
LATHE |
X0/X, Z0/Z |
8 |
DSC-803L |
X0/X, Z10/Z1, Z20/Z2 |
|
| ■ MODEL DSC 800
SERIES & 703EDM : - TECHNICAL SPECIFICATION - |
| Specification/Model |
DSC- 801 / 802 / 803 / 804 |
DSC-703EDM |
| Display |
Green FND having 7 digits |
| Unit (mm/inch) |
Direct conversion |
| Display resolution |
0.01 / 0.005mm / 0.001mm |
| ABS |
100 points |
10 points |
| Memory backup |
10 years without power |
| Oprating temperature |
-5℃ ~ 45℃ (23℉ ~ 113℉) |
| Voltage consumption |
15W |
| Dimensions & weight |
279(W)×70(D)×151(H), 1.6kg |
279x110x151, 2.2kg |
| Power source |
AC 80 ~ 264V, 50/60Hz (free voltage) |
| External housing |
Aluminum diecasting |
| Keyboard |
Membrane type |
| Function lamp |
Red light |
| (EDM) Steps |
|
4 Steps |
|
| Function |
800 Series |
703EDM |
Bolt hole circle |
* |
* |
Selecting axis function in Bolt hole circle |
* |
* |
Preset & Preset recall |
* |
* |
Changing resolution |
* |
* |
Initializing |
* |
* |
Memory back up at power failure |
* |
* |
Display zero |
* |
* |
Rate compensation |
* |
* |
Testing FND |
* |
* |
1/2 Partition |
* |
* |
ABS / INCR |
100 points |
10 points |
mm / inch |
* |
* |
Changing direction of axis |
* |
* |
RAD / DIA for lathe |
* |
|
Summing up 2 axes for lathe |
* |
|
Display " Error" |
* |
|
Wired remote controller |
▶ |
|
for EDM (Electro Discharging Machine) |
|
4Steps |
|
| *:Provided ▶:Optional
|
|
| |
Function of DIGITAL READOUT |
● Bolt hole circle
Since up to 10,000 holes can be made along the
circumference of the basic circle, it increases
efficience of works and production in working
for molds and processing parts.
● ABS/INCR
Incremental machining (zero approaching) can be
used anytime by presetting the coordinate of each
axis without error. In absolute positioning, JENIX
counter can be saved 100 coordinates to memory.
● Counting direction conversion
Moving direction can be converted, (+) or
(-) value can be selectable.
● Preset & preset recall
It makes your working more convenient with
easy operation to preset data and recall it.
● Summing up 2 axes' values
This can be used to sum up two feed values,
the summed value displays at on Y-axis displaying
panel.
● Memory back-up
By the battery built inside a counter, pre-saved
data are preserved even when the power is off.
|
---------------------------------------------------------------------------------------------------------------------------------
JENIX ABSOLUTE Digital Readout
<Main function>
▶ For only absolute linear scale
▶ Preset / Preset recall
▶ 1/2 function
▶ mm / inch
▶ Muti datum point (up to 100)
▶ Bolt hole circle ▶ Process direction change
▶ Error correction ▶ Program reset
▶ LED test
▶ Lathe
- 2 axes sum up,
double counting, tool offset
<SPECIFICATIONS>
| Model |
DSC-800A Series (801A~804A) |
DS-803AEDM |
| Display |
Green 7 segment (LED), 8 digits |
|
| mm / Inch |
direct conversion |
|
| Resolution |
Shold be accord with resolution of the scale |
(5㎛, 1㎛, 0.5㎛, 0.1㎛)
(inch: 0.0002 ~ 0.000004) |
| Multiple datum point |
100 (No.0~99) |
|
| Memory Backup |
10 year without power |
|
| Operation temp. |
-5℃ ~ 45℃ / 23℉ ~ 113℉ |
|
| Consumable power |
10W |
|
| Diemsions, Weight |
mm: 279 x 151 x 70 ( 1.6 kg)
inch: 10.9 x 5.9 x 2.8 ( 3.52 lb ) |
|
| Power |
Adapter (DC 8.3v, 3A), input AC 110~220V 50/60Hz |
|
| Exterior case |
Aluminium Diecasting |
|
| Keypad |
Membrain type |
|
| Function Lamp |
red LED |
|
| RS232C output |
Optional (115200bps, 8bit data, no parity, 1 stop bit) |
|
| Electro-discharging step |
x |
4 steps |
<Kinds of Keypad>
Digital readout |
Keypads |
| 801 |
801AG ( G ) |
| 802 |
802AM ( X, Y ), 802AL ( X, Z ), 802AG ( Y, Z) |
| 803 |
803AM ( X, Y, Z ), 803AL ( X / Z1 / Z2 ) |
| 804 |
804AM ( X, Y, Z, Q ) |
| 803EDM |
803AEDM ( X, Y, Z ) |
G: Grinder , M: Milling , L: Lathe , EDM: EDM
|
