<< INCREMENTAL LINEAR SCALE >>

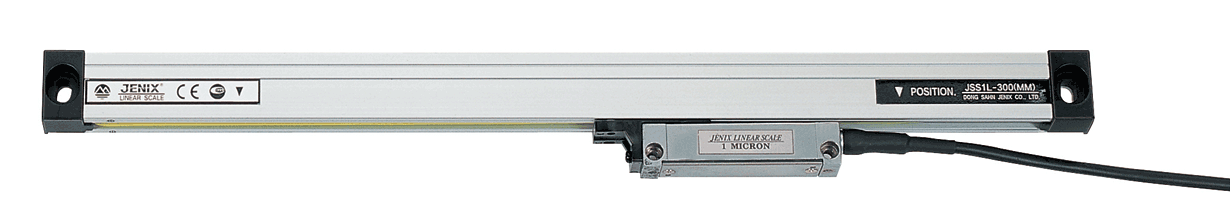

Built-in GLASS scale guarantees accuracy. There are four types of incremental linear scales, medium, slim, ultra-slim and long-axis type, and mounting is easy.
The accuracy and stability of JENIX LINEAR SCALE are internationally recognized. It is exported all over the world.
The digital readout system is made in Korea, world-recognized quality with guaranteed after-sales service and technical support.
[ Applications]
* Plannner Miller, Big lathe, Big machine
* Wood machine, Cutting macine, Industrial machine
* Conventional milling, lathe, grinder etc
* Position reading for Stacker crain, Conveyer
* NC lahte, Machining center and other automation machine
* Toolmakers microscope
* Other industrila machinery and automation machinery
Type |
Model |
Length |
|
|
JSM |
50~3000
(mm) |
|
|

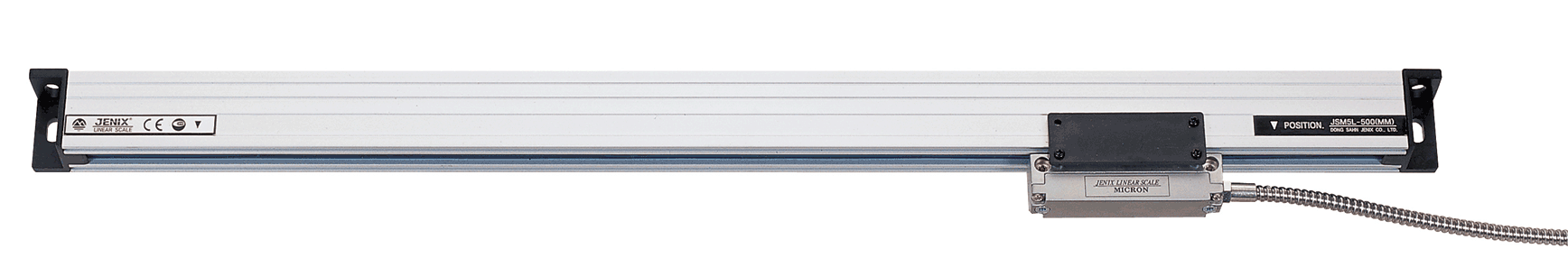

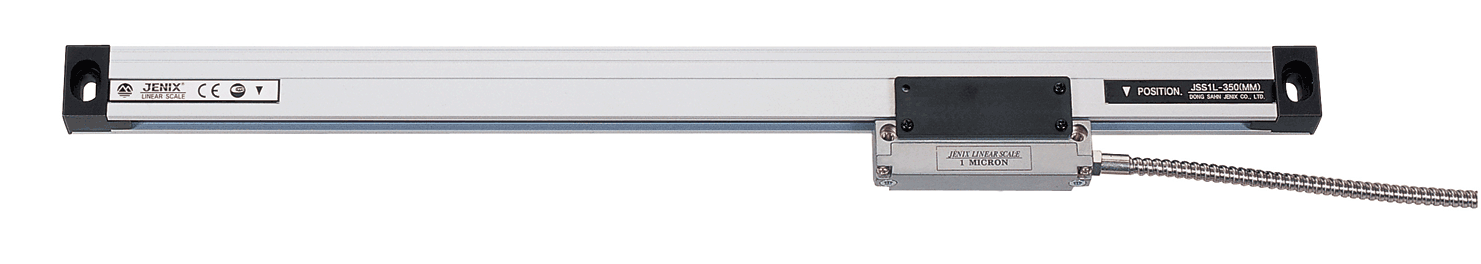

Slim
|
JSS |
50~1000 (mm) |
|
|
Ultra-slim
|
JSN |
50~450 (mm) |
|
|

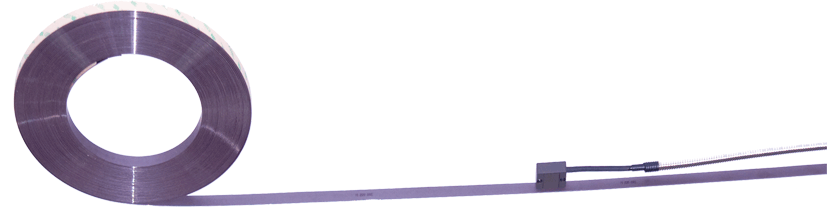

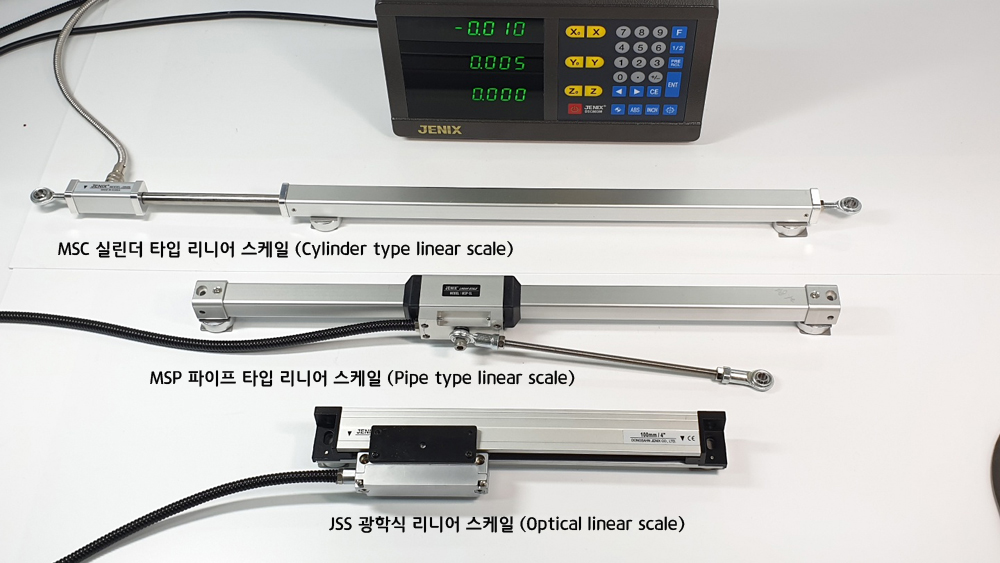

Magnetic scale
|
MSC
|
Cylinder type
50mm ~1000mm
|
 |
MSOW |
50mm~ over 10m |
|
MSS |
50mm~5000mm |
|

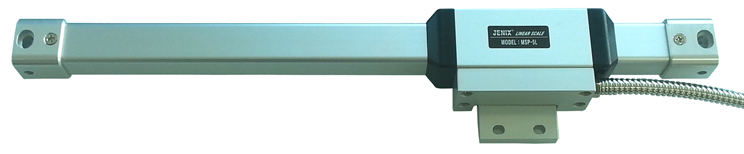

MSP
|
50mm~2000mm
(Pipe type) |
|
|
| |
| |
Resolution |
mm |
inch |
Example |
1L |
1/1000 mm |
0.00004 inch |
JSS1L-500 , JSN1L-250 |
5L |
5/1000mm |
0.0002 inch |
JSS5L-750, JSM5L-3000, MSS5L-4000 |
10L |
1/100 mm |
0.0004 inch |
MSS10L-4000, MSO10L-8000 |
|
|
* Ordering Details
Linear scale |
Style |
Resolution |
Measuring length |
Overall length |
JSN1L- 250 (10") |
Ultra slim |
1/1000mm (= 0.00004inch) |
250mm (10") |
400mm (16") |
JSS5L- 800 (32") |
Slim |
5/1000mm (=0.0002inch) |
800mm (32") |
1000mm (40") |
JSM5L-1300 (52") |
Standard |
5/1000mm (=0.0002inch) |
1300mm (52") |
1500mm (60") |
MSO10L-5000 |
Magnetic |
1/100mm (=0.0004inch) |
5000mm |
5200mm |
|

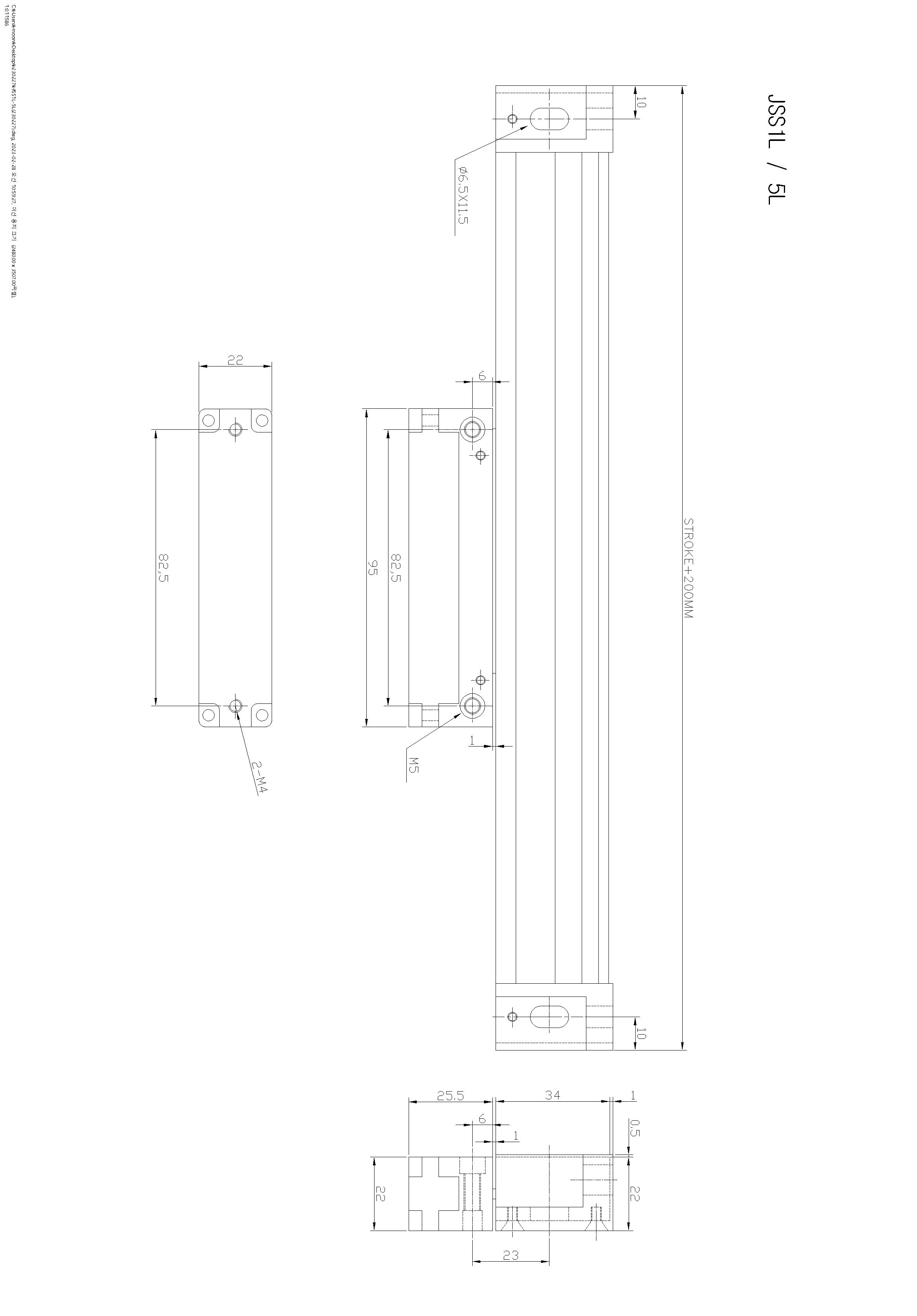

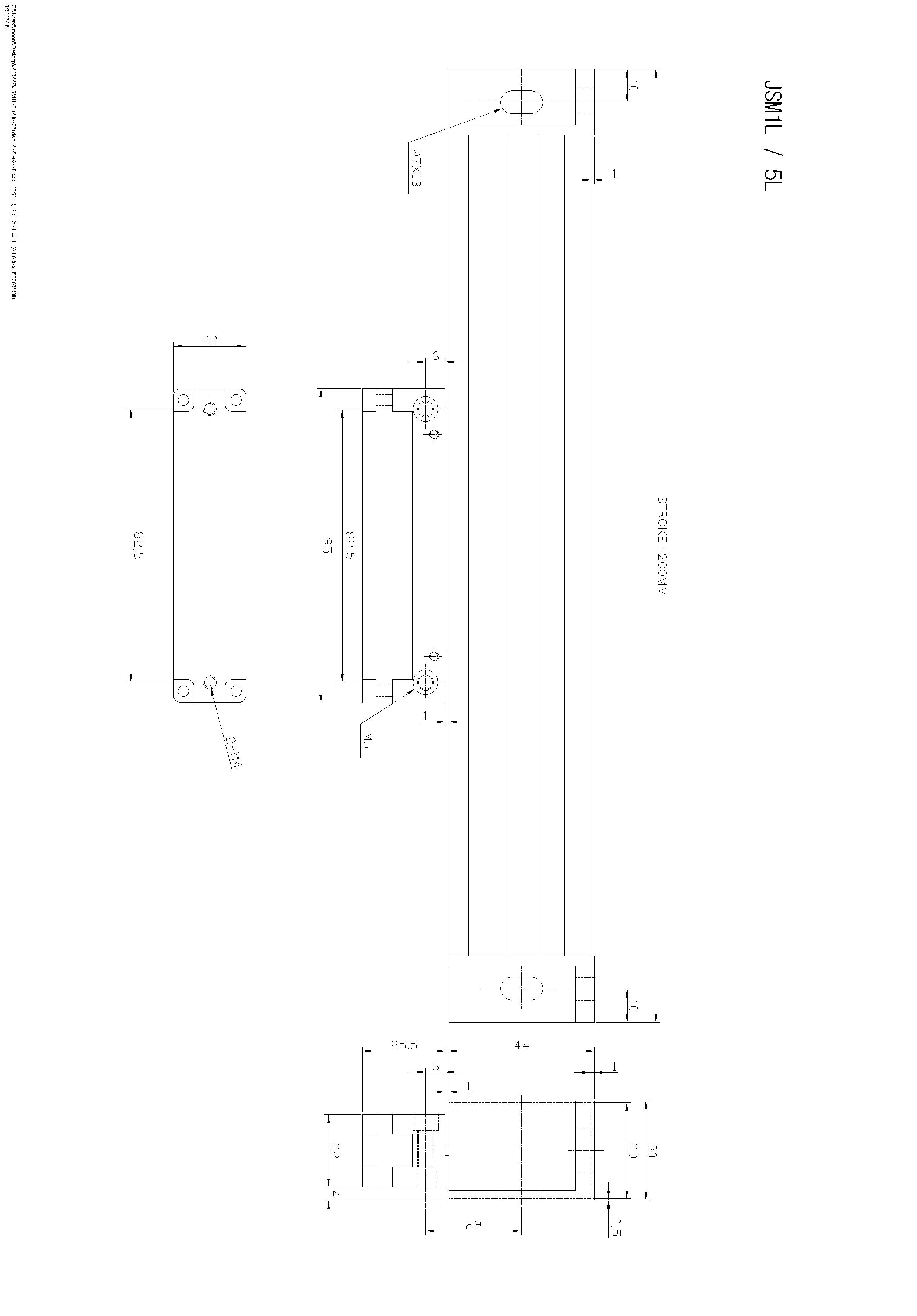

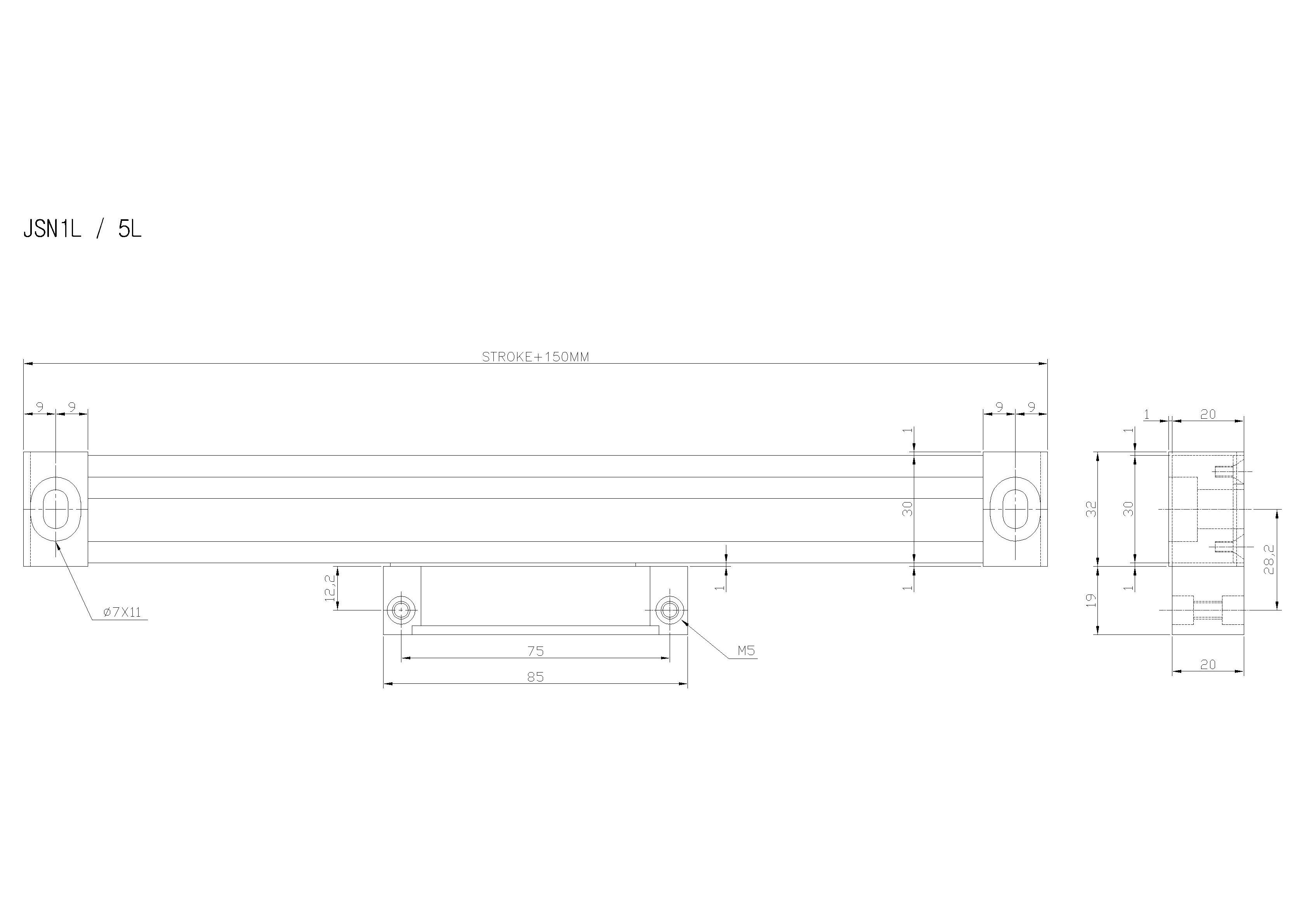

1. Drawings for optical linear scale

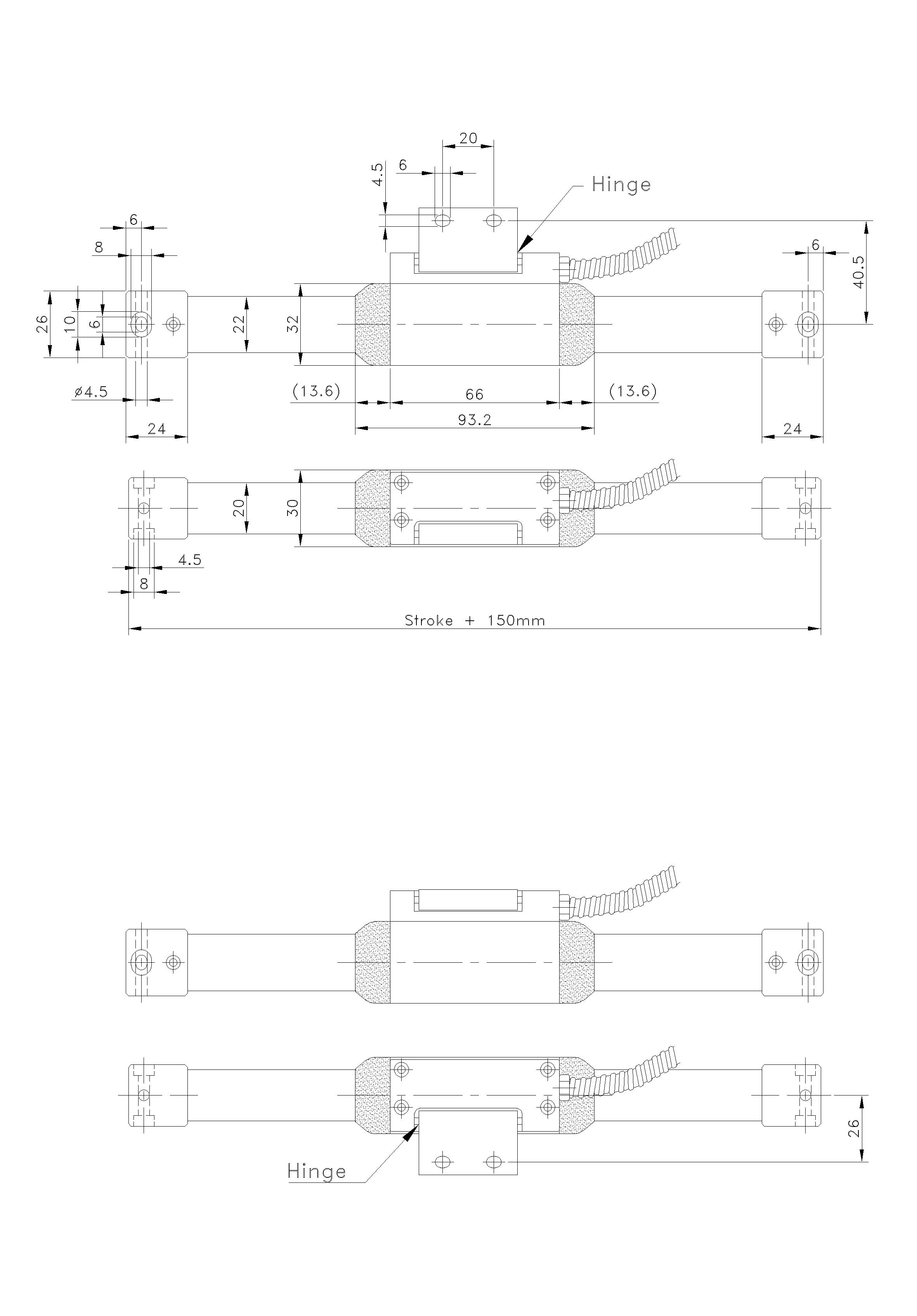

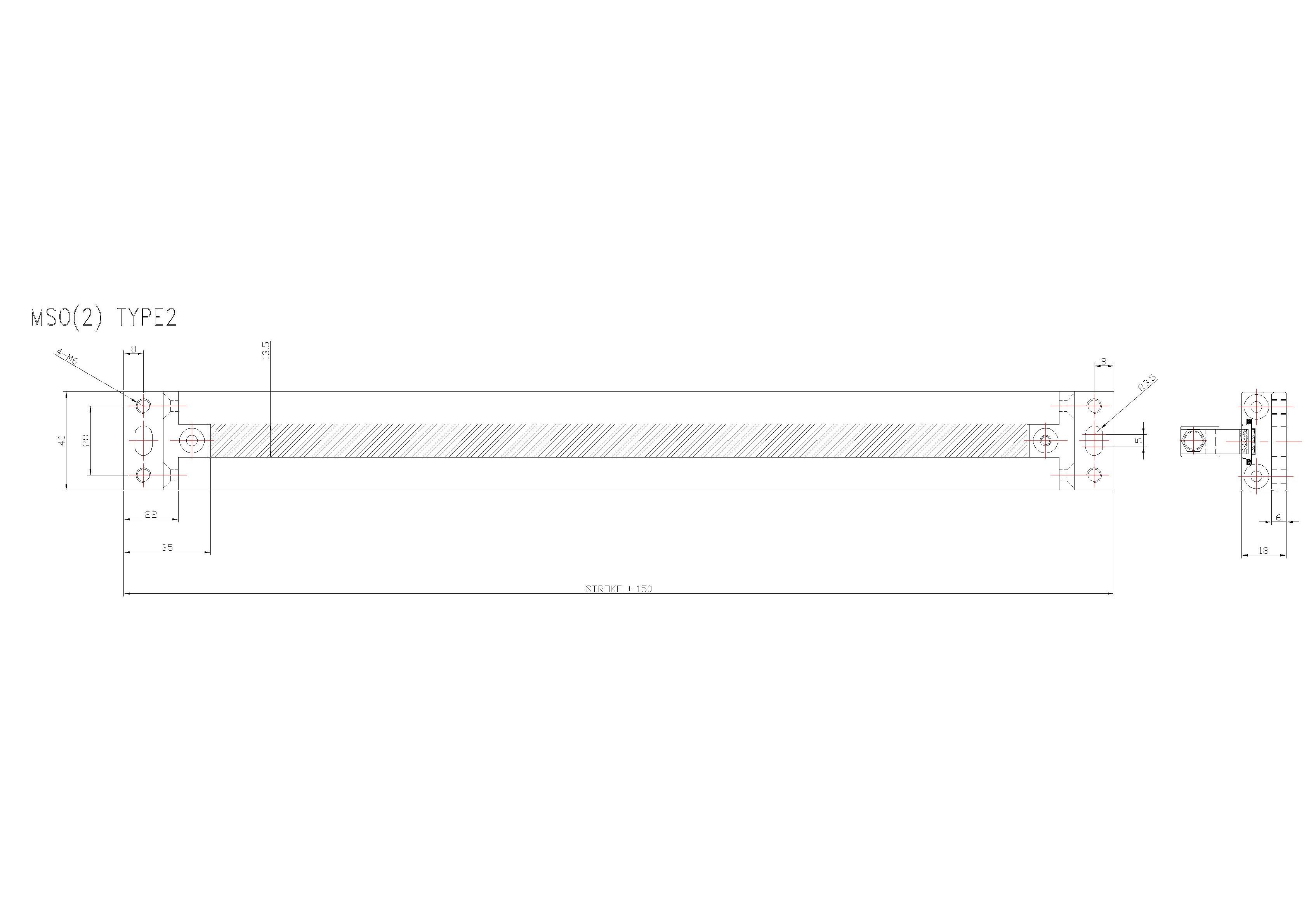

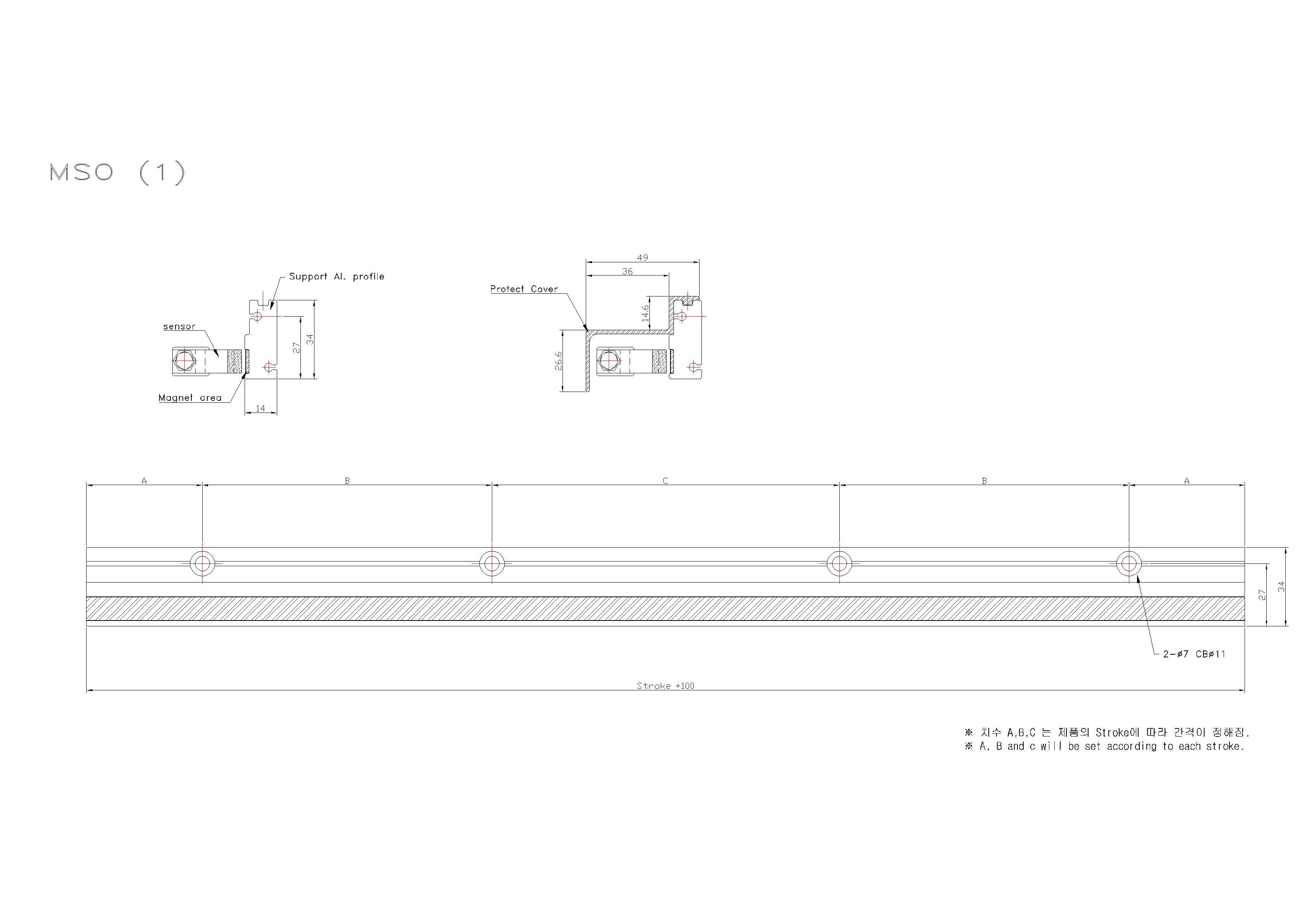

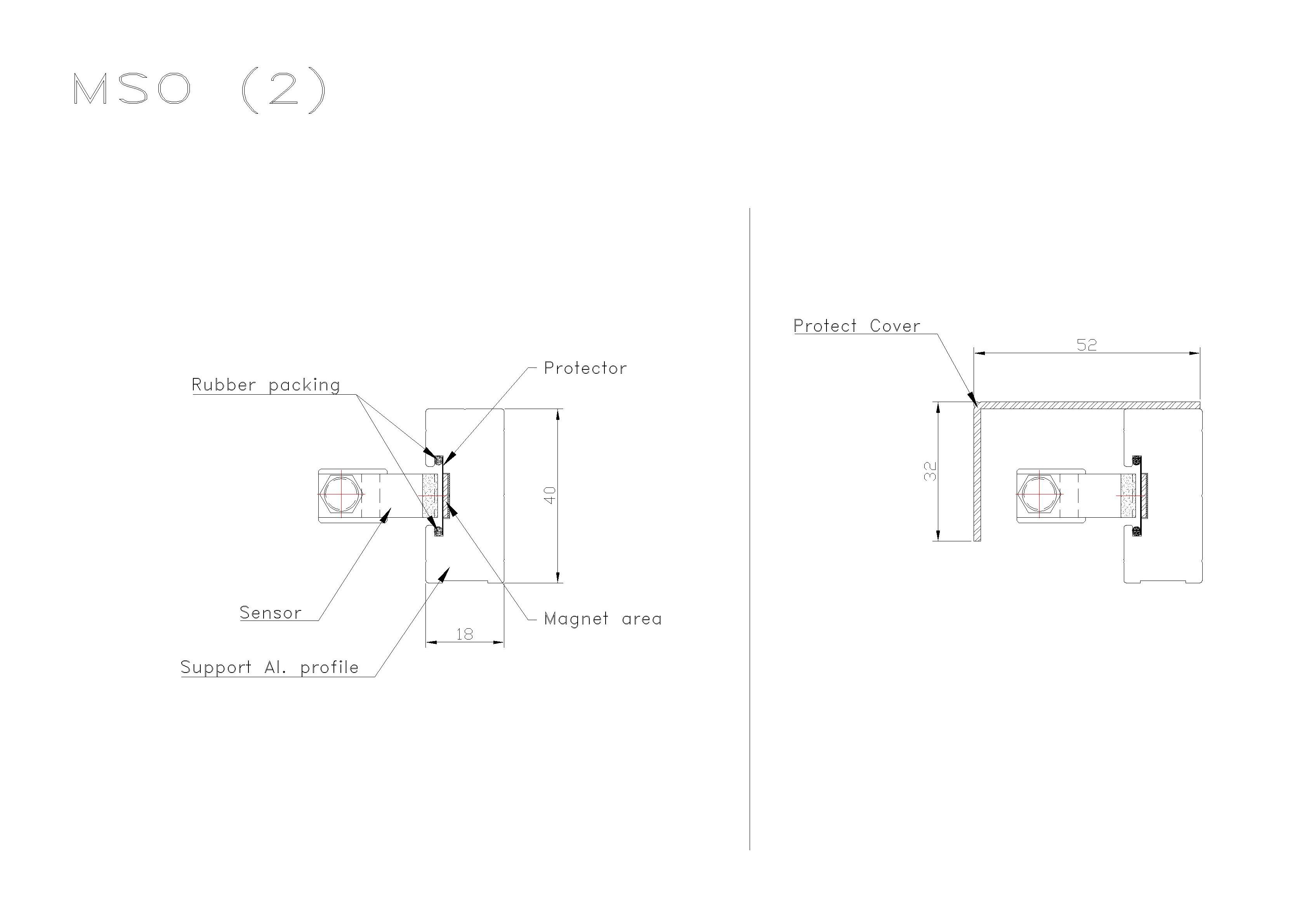

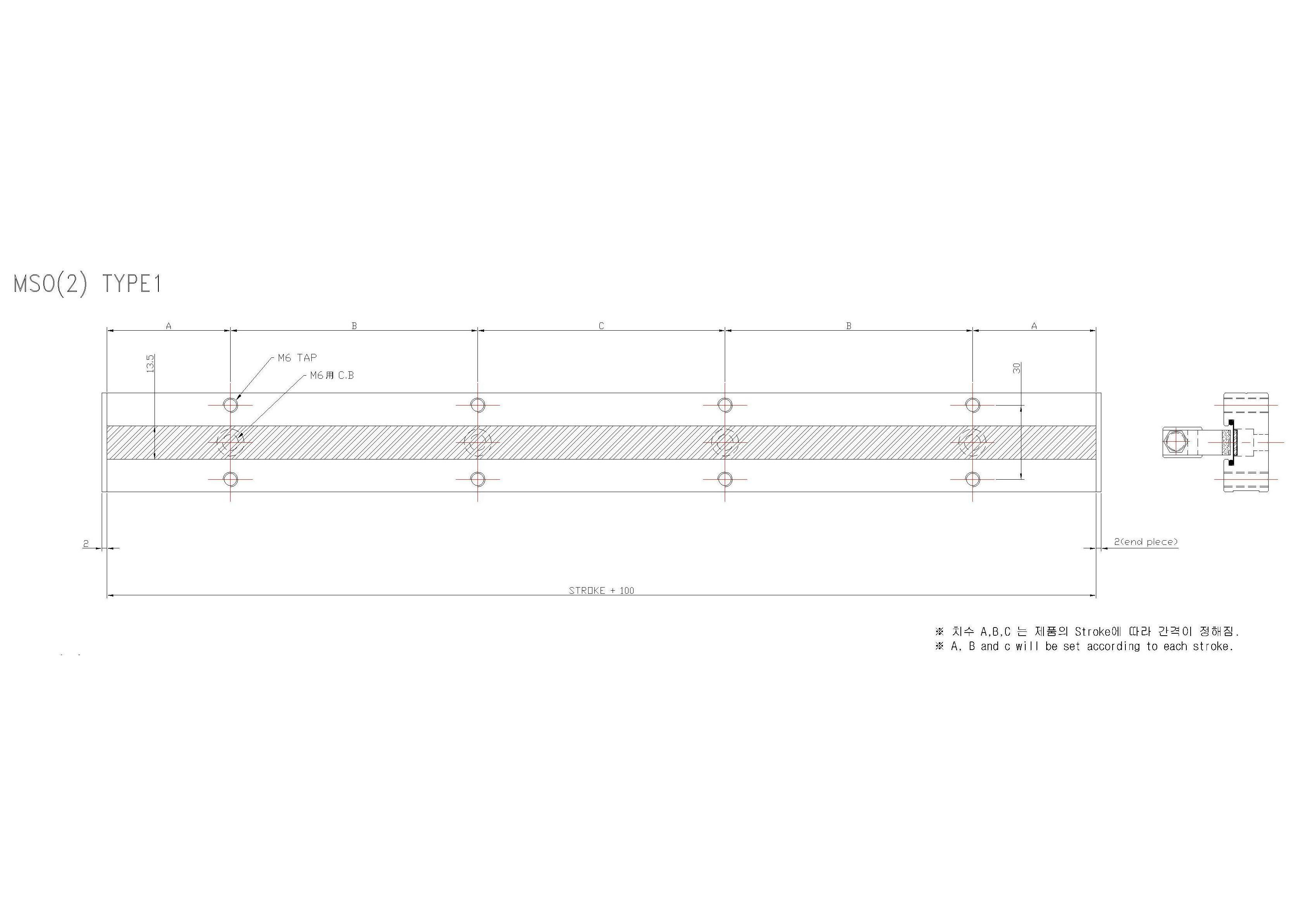

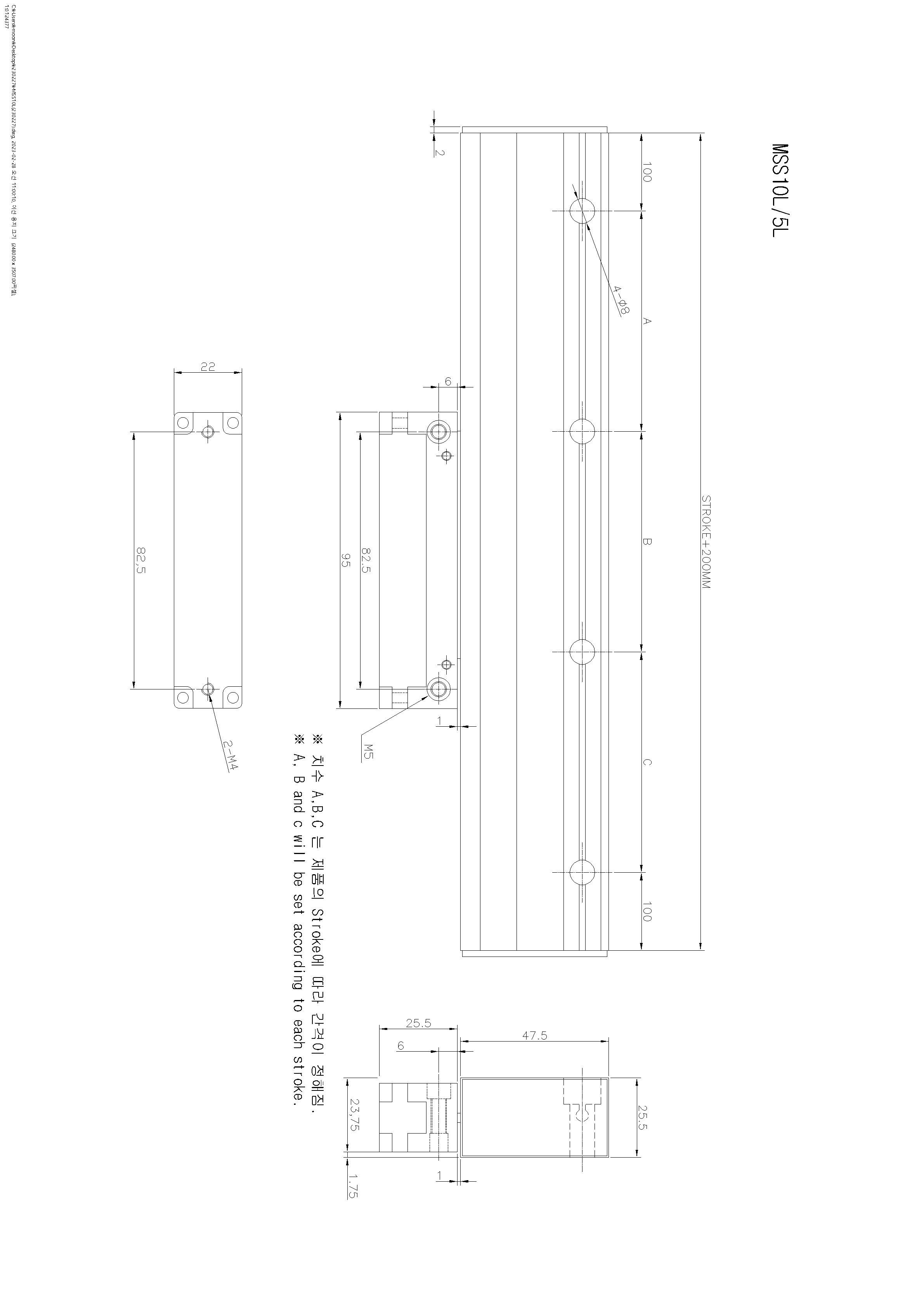

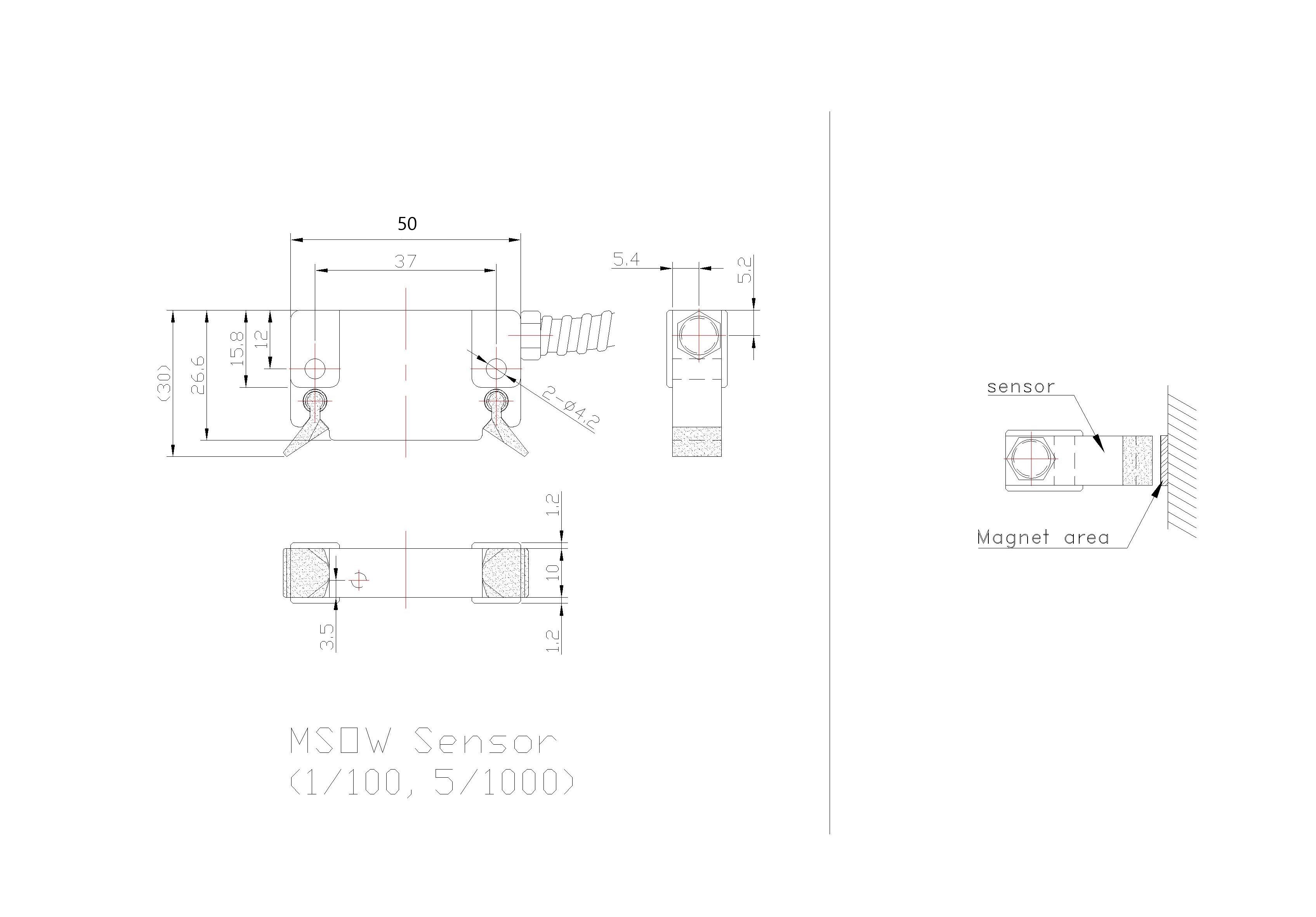

2. Drawings for magnetic linear scale
Magnetic scale Ⅰ
(Sealed type) |
PDF (acrobat) |
|
|
|
JPG (image) |
|
MSC |
|
DWG (autocad) |
|
MSC |
|
Magnetic scale Ⅱ
(Open type) |
|
Sensor (encoder) |
Profile |
PDF (acrobat) |
|
|
JPG (image) |
|
|
|
DWG (autocad) |
|

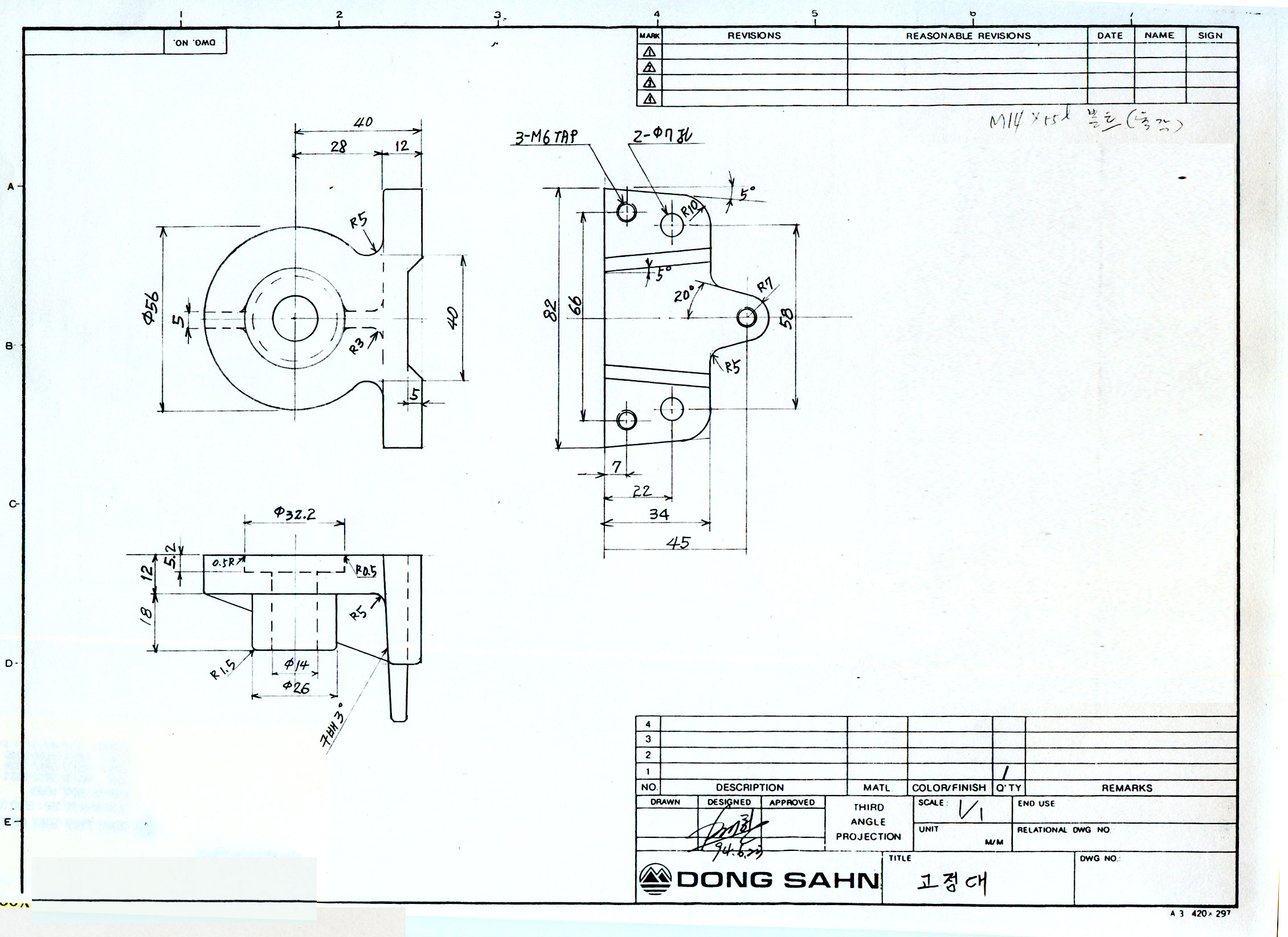

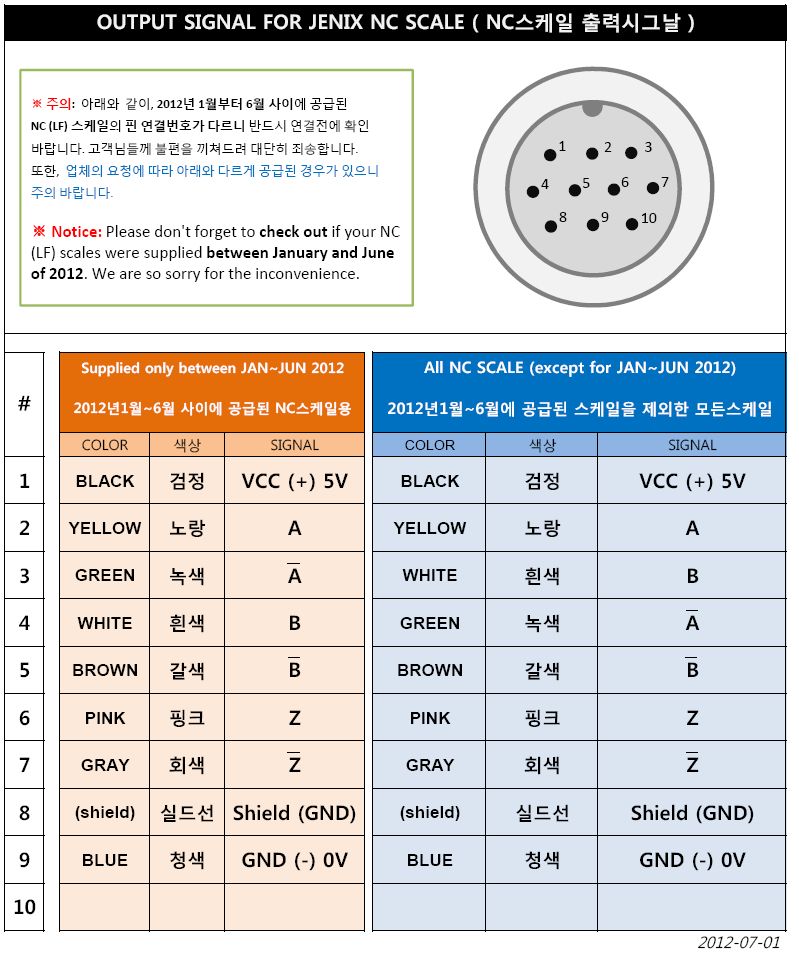

3. Connection information and dimensional drawing for mounting linear scales
|
* TECHNICAL SPECIFICATIONS ( OPTIAL LINEAR SCALE)
|
| |
JSS, JSM,
JSN- 1L (1/1000mm) |
JSS,JSM,JSN-
5L (5/1000mm) |
JSS, JSM - 1LF
(Feed back or NC scale) |
Remark |
| Output signal |
 |
 |
 |
※ Additional extension cables are optional. |
| Measurement |
20㎛ (0.0008
inch) Glass scale |
| Accuracy |
2+2L/1000mm |
3+3L/1000mm |
2+2L/1000mm |
| Resolution |
1㎛(0.001mm) |
5㎛(0.005mm) |
1㎛(0.001mm) |
Output pulse
|
250 pulse/mm |
50 pulse/mm |
250 pulse/mm |
Max.Travering Speed
|
36m / min (120ft/min) |
60m / min (200ft/min) |
36m / min (120ft/min) |
| Reference signal |
25mm (0.98
inch) |
Grating period
|
0.02mm
(0.0008 inch) |
| Moving force |
≤ 5 N |
Max. vibration
|
30 ㎨ (3G) |
| Storage temp. |
-20℃ ~
70℃(-4℉~158℉) |
Working ambient temp.
|
-5℃ ~
45℃(23℉~113℉) |
Supply voltage
|
+5V, ±5%,
150mA |
| Protective design grade |
(1) Equivalent
to Ip53, (2)Improvement of the design grade |
* TECHNICAL SPECIFICATIONS ( MAGNETIC LINEAR SCALE)
| |
MSOW(open type) |
MSS |
MSP/MSC |
비고 |
| Measurement |
incremmental |
※ Extension cables are optional. |
| Resolution |
0.01mm/0.005mm |
| Repeatability |
± 1 incremental |
정밀도
|
±10㎛/m
|
sensor-tape space
|
under 2.5mm
|
x |
x |
Protection grade
|
IP67 |
| Operation temp. |
-40℃ to +120℃
|
STorage temp.
|
-40℃ to +120℃
|
| Output level |
5V TTL
|
Output current per channel
|
± 4mA
|
| DC Power |
5V ± 2.5%
|
Output frequency
|
10KHz per channel
A or B (edge rate 40MHz)
|
Measuring length
|
25m, 50m
|
5000mm |
2000mm/1000mm |
|
|
* SCALE SPECIFICATION
|
| MODEL
JSM,JSS,JSN1L(5L)
mm(inch) |
Effective
measuring length
mm(inch) |
Max. movable
Length (mm(inch) |
Overall Length |
| JSS, JSM |
JSN |
JSS, JSM |
JSN |
| 50 (2) |
50 (2) |
90 (3.54) |
70 (2.76) |
250 (10) |
200 (08) |
| 100 (4) |
100 (4) |
140 (5.51) |
120 (4.72) |
300 (12) |
250 (10) |
150
(6) |
150 (6) |
190 (7.48) |
170 (6.69) |
350 (14) |
300 (12) |
200
(8) |
200 (8) |
240 (9.44) |
220 (8.66) |
400 (16) |
350 (14) |
250
(10) |
250 (10) |
290 (11.41) |
270 (10.63) |
450 (18) |
400 (16) |
300
(12) |
300 (12) |
340 (13.38) |
320 (12.60) |
500 (20) |
450 (18) |
350
(14) |
350 (14) |
390 (15.35) |
370 (14.57) |
550 (22) |
500 (20) |
400
(16) |
400 (16) |
440 (17.32) |
420 (16.54) |
600 (24) |
550 (22) |
450
(18) |
450 (18) |
490 (19.29) |
470 (15.80) |
650 (26) |
600 (24) |
500
(20) |
500 (20) |
540 (21.25) |
|
700 (28) |
|
600
(24) |
600 (24) |
640 (25.19) |
|
800 (32) |
|
700
(28) |
700 (28) |
740 (29.13) |
|
900 (36) |
|
750
(30) |
750 (30) |
790 (31.10) |
|
950 (38) |
|
800
(32) |
800 (32) |
840 (33.07) |
|
1000 (40) |
|
900
(36) |
900 (36) |
940 (37.00) |
|
1100 (44) |
|
1000
(40) |
1000 (40) |
1040 (40.94) |
|
1200 (48) |
|
1100
(44) |
1100 (44)
|
1140 (44.88) |
|
1300 (52) |
|
1200
(48) |
1200 (48)
|
1240 (48.81) |
|
1400 (56) |
|
1300
(52) |
1300 (52)
|
1340 (52.75) |
|
1500 (60) |
|
1400
(56) |
1400 (56)
|
1440 (56.69) |
|
1600 (64) |
|
1500
(60) |
1500 (60)
|
1540 (60.62) |
|
1700 (28) |
|
1600
(64) |
1600 (64)
|
1640 (64.56) |
|
1800 (72) |
|
1700
(68) |
1700 (68)
|
1740 (68.50) |
|
1900 (76) |
|
1800
(72) |
1800 (72)
|
1840 (72.44) |
|
2000 (80) |
|
1900
(76) |
1900 (76)
|
1940 (76.37) |
|
2100 (84) |
|
2000
(80) |
2000 (80)
|
2040 (80.31) |
|
2200 (88) |
|
2100
(84) |
2100 (84)
|
2140 (84.25) |
|
2300 (88) |
|
2200
(88) |
2200 (88)
|
2240 (88.18) |
|
2400 (96) |
|
2300
(92) |
2300 (92)
|
2340 (92.12) |
|
2500 (98) |
|
2400
(96) |
2400 (96)
|
2440 (96.06) |
|
2600 (104) |
|
2500
(98) |
2500 (98)
|
2540 (100.00) |
|
2700 (106) |
|
2600
(104) |
2600 (104)
|
2640 (109.93) |
|
2800 (112) |
|
2700
(106) |
2700 (106) |
2740 (107.87) |
|
2900 (114) |
|
2800
(110) |
2800 (110)
|
2840 (111.81) |
|
3000 (118) |
|
2900
(114) |
2900 (114)
|
2940 (115.74) |
|
3100 (122) |
|
3000
(118) |
3000 (118)
|
3040 (119.68) |
|
3200 (126) |
|
* Bold typed characters are all JSM
(Standard) style
|
|
 |
| By the relative moving
of MAIN scale and INDEX scale, light signal is changed
to Electric signal.
After that, it is made
to high divisional signals via the Electric circuit |
|
|
|
|
|
